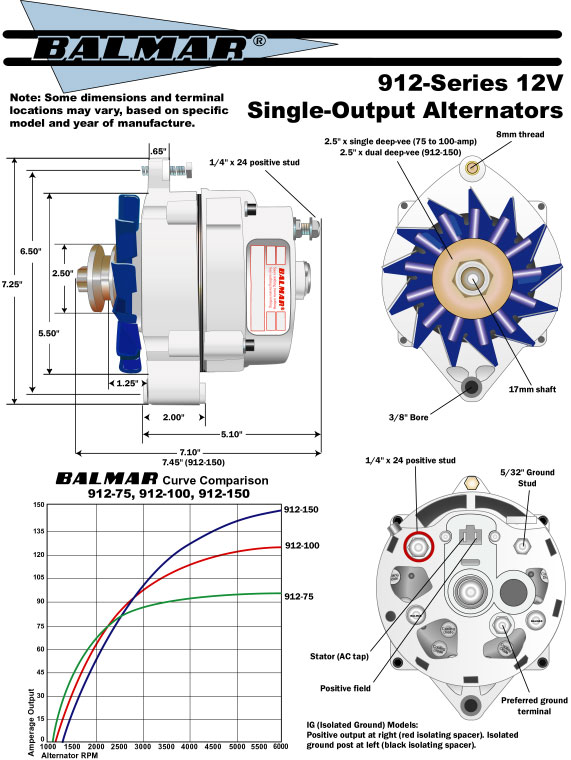

912-75 Specifications
Amperage output:               75A
Operating range:                 0-10,000 RPM (Rotor)
Alternator polarity:               P-type (Positive)
Mounting configuration:      2" single foot Delco-style mount
Standard pulley type/size:  Single deep-vee (3/8" to 1/2") / 2.5" diameter
Minimum Belt Width:           3/8" Single Belt
Outputs:                                Single
Regulation:                           External (Single or multi-stage)
Finish:                                   White Powdercoat / Blue fan
Ship weight:                         12 lbs.
912-100 Specifications
Rated Amperage output:   100A
Operating range:                 0-10,000 RPM (Rotor)
Alternator polarity:               P-type (Positive)
Minimum Belt Width:           1/2" Single
Mounting configuration:      2" single foot Delco-style mount
Standard pulley type/size:  Single deep-vee (3/8" to 1/2") / 2.5" diameter
Outputs:                                Single
Regulation:                           External (Single or multi-stage)
Finish:                                   White Powdercoat / Blue fan
Ship weight:                         12 lbs.
912-150 Specifications
Rated Amperage output:   150A
Operating range:                 0-10,000 RPM (Rotor)
Alternator polarity:               P-type (Positive)
Minimum Belt Width:           1/2" Dual
Mounting configuration:      2" single foot Delco-style mount
Standard pulley type/size:  Dual deep-vee (3/8" to 1/2") / 2.5" diameter
Outputs:                                Single
Regulation:                           External (Single or multi-stage)
Finish:                                   White Powdercoat / Blue fan
Ship weight:                         12 lbs.
