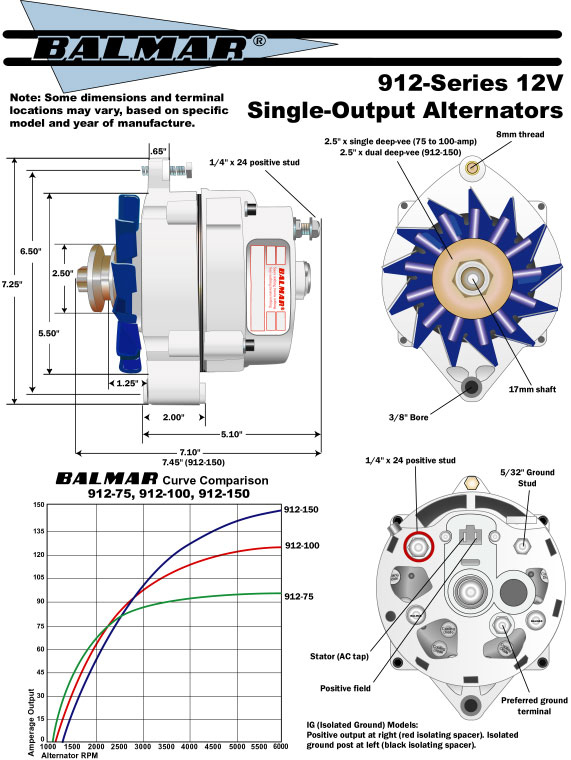

912-75 Specifications
Amperage output:
75A
Operating range:
0-10,000 RPM (Rotor)
Alternator polarity:
P-type (Positive)
Mounting configuration: 2" single foot
Delco-style mount
Standard pulley type/size: Single deep-vee (3/8" to 1/2") /
2.5" diameter
Minimum Belt Width:
3/8" Single Belt
Outputs:
Single
Regulation:
External (Single or multi-stage)
Finish:
White Powdercoat / Blue fan
Ship weight:
12 lbs.
912-100 Specifications
Rated Amperage output: 100A
Operating range:
0-10,000 RPM (Rotor)
Alternator polarity:
P-type (Positive)
Minimum Belt Width:
1/2" Single
Mounting configuration: 2" single foot
Delco-style mount
Standard pulley type/size: Single deep-vee (3/8" to 1/2") /
2.5" diameter
Outputs:
Single
Regulation:
External (Single or multi-stage)
Finish:
White Powdercoat / Blue fan
Ship weight:
12 lbs.
912-150 Specifications
Rated Amperage output: 150A
Operating range:
0-10,000 RPM (Rotor)
Alternator polarity:
P-type (Positive)
Minimum Belt Width:
1/2" Dual
Mounting configuration: 2" single foot
Delco-style mount
Standard pulley type/size: Dual deep-vee (3/8" to 1/2") /
2.5" diameter
Outputs:
Single
Regulation:
External (Single or multi-stage)
Finish:
White Powdercoat / Blue fan
Ship weight:
12 lbs.
